【均线指标填充颜色区块，均线指标，颜色填充】均线指标填充颜色区块，颜色区块，均线指标，颜色填充

分类 : 趋势 MT4 无限制均线指标颜色填充

Ytkj0622 | 发表于前天 10:01 | 显示全部楼层 |复制链接

//---以下是均线填充源码
//---mt5实现思路
首先画两条均线用copybuffer 绑定数组
用ArrayCopy 绑定filling 完成区块填充

//---mt4实现思路
首先画两条均线用copybuffer 绑定数组
DRAW_HISTOGRAM 用均线给他赋值
上区块画上柱下区块画下柱

//---mql4//---mql4//---mql4

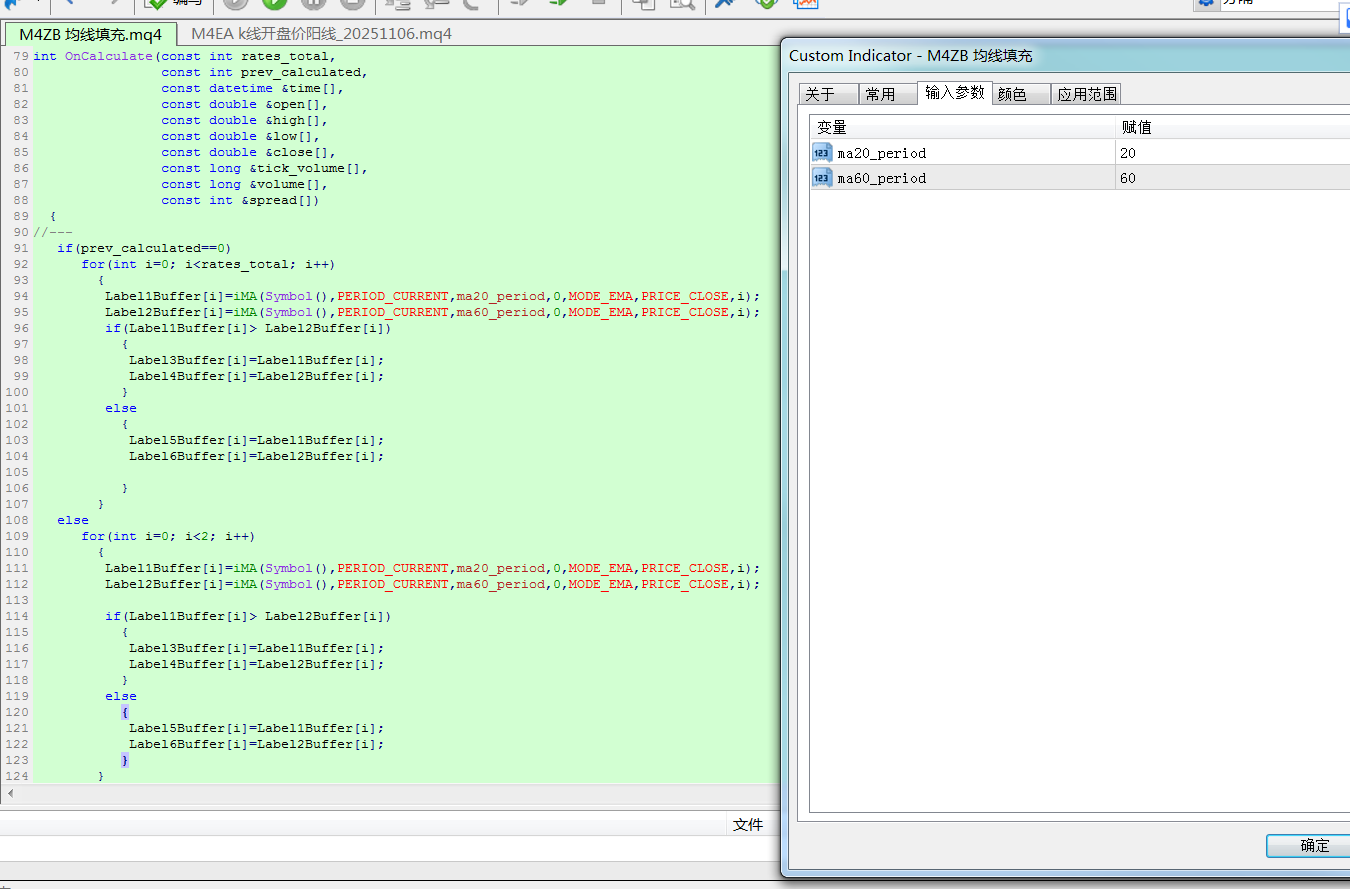

int OnCalculate(const int rates_total,
            const int prev_calculated,
            const datetime &time[],
            const double &open[],
            const double &high[],
            const double &low[],
            const double &close[],
            const long &tick_volume[],
            const long &volume[],
            const int &spread[])
  {
//---
if(prev_calculated==0)
   for(int i=0; i<rates_total; i++)
      {
      Label1Buffer=iMA(Symbol(),PERIOD_CURRENT,ma20_period,0,MODE_EMA,PRICE_CLOSE,i);
      Label2Buffer=iMA(Symbol(),PERIOD_CURRENT,ma60_period,0,MODE_EMA,PRICE_CLOSE,i);
      if(Label1Buffer> Label2Buffer)
         {
         Label3Buffer=Label1Buffer;
         Label4Buffer=Label2Buffer;
         }
      else
         {
         Label5Buffer=Label1Buffer;
         Label6Buffer=Label2Buffer;

         }
      }
else
   for(int i=0; i<2; i++)
      {
      Label1Buffer=iMA(Symbol(),PERIOD_CURRENT,ma20_period,0,MODE_EMA,PRICE_CLOSE,i);
      Label2Buffer=iMA(Symbol(),PERIOD_CURRENT,ma60_period,0,MODE_EMA,PRICE_CLOSE,i);

      if(Label1Buffer> Label2Buffer)
         {
         Label3Buffer=Label1Buffer;
         Label4Buffer=Label2Buffer;
         }
      else
         {
         Label5Buffer=Label1Buffer;
         Label6Buffer=Label2Buffer;
         }
      }
//--- return value of prev_calculated for next call
return(rates_total);
  }
//+------------------------------------------------------------------+
//+------------------------------------------------------------------+
//+------------------------------------------------------------------+//---mql5//---mql5//---mql5

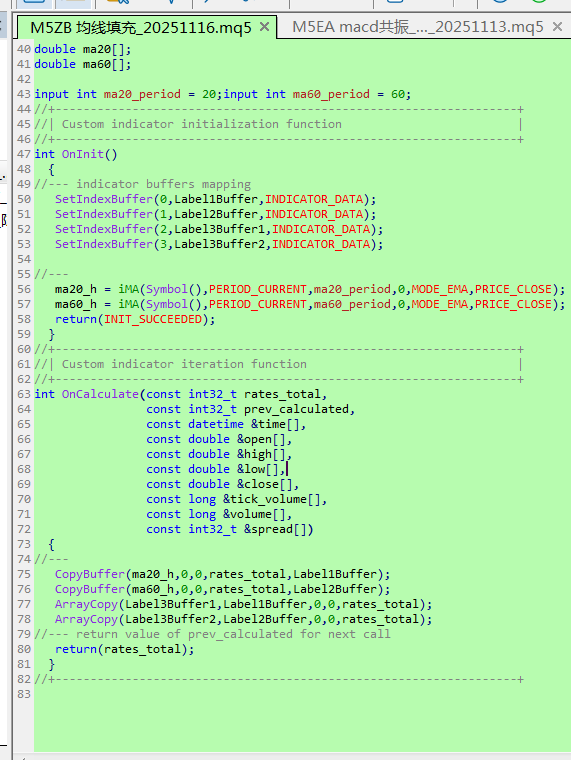

int OnCalculate(const int32_t rates_total,
            const int32_t prev_calculated,
            const datetime &time[],
            const double &open[],
            const double &high[],
            const double &low[],
            const double &close[],
            const long &tick_volume[],
            const long &volume[],
            const int32_t &spread[])
  {
//---
CopyBuffer(ma20_h,0,0,rates_total,Label1Buffer);
CopyBuffer(ma60_h,0,0,rates_total,Label2Buffer);
ArrayCopy(Label3Buffer1,Label1Buffer,0,0,rates_total);
ArrayCopy(Label3Buffer2,Label2Buffer,0,0,rates_total);
return(rates_total);
  }
//+------------------------------------------------------------------+
