指标名称：CCI热力图[color=rgba(0, 0, 0, 0.9)]
版本：MT4 ver. 2.01（指标）
CCI热力图是一个 MetaTrader 4 (MT4) 指标，基于 CCI（Commodity Channel Index）指标，在图表上显示不同交易品种和时间框架的CCI热力图。该指标通过颜色直观地显示市场的 强势上升、弱势区域和强势下降，并提供交互按钮，方便用户开启/关闭热力图。
多品种、多时间框架支持：用户可指定多个交易品种和时间框架，热力图会显示对应的 CCI 信号。 ✅ CCI 热力图颜色区分： 绿色（Strong Up） → CCI 超过 +200，表示强势上升。 灰色（Neutral） → CCI 在 -200 到 +200 之间，市场中性。 红色（Strong Down） → CCI 低于 -200，表示强势下降。 ✅ 可调节参数：允许用户修改 CCI 计算方式、颜色、按钮位置、窗口位置等。 ✅ 交互式按钮：图表上有一个 CCI 按钮，用户可点击按钮开启或关闭 CCI 热图。 使用方法 安装指标 下载 CCI热力图.ex4 文件。 打开 MT4 → 点击 "文件" → "打开数据文件夹"。 进入 MQL4/Indicators/ 目录，将 CCI热力图.ex4 复制到该目录下。 重启 MT4 或在 导航窗口（Ctrl+N） 的 指标列表 右键点击 刷新。

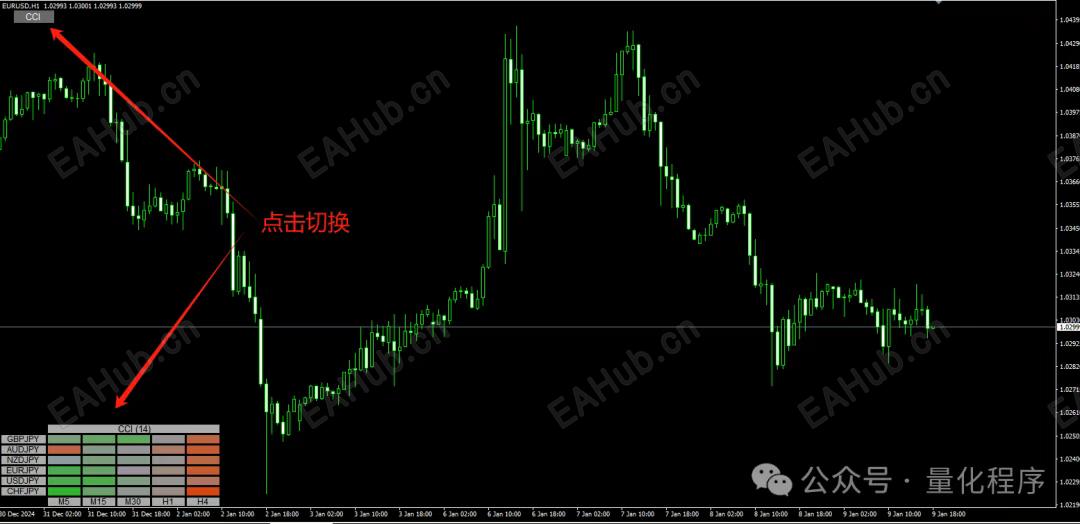

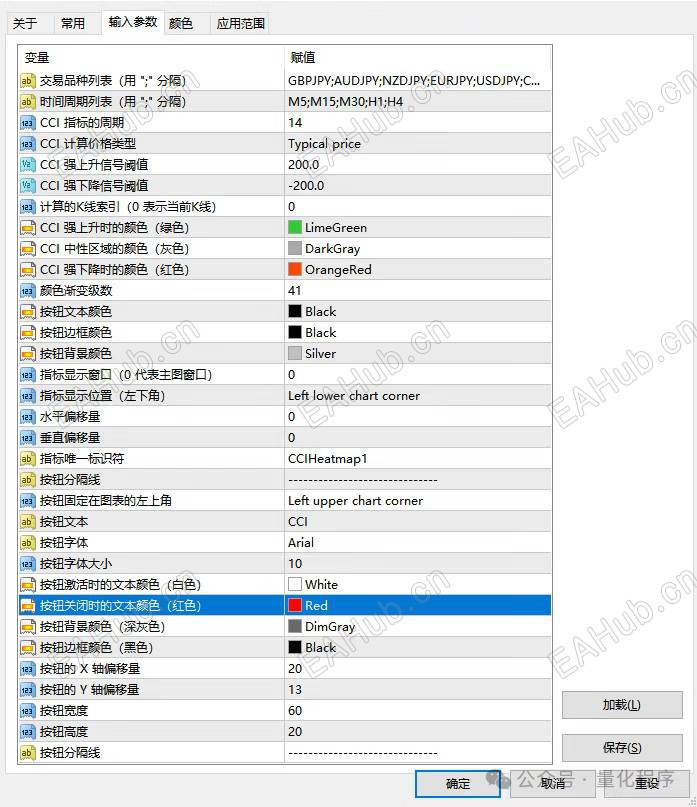

添加到图表 使用 CCI 热图 适用交易策略 ✅ 趋势交易者：可以用来识别市场趋势，当多个时间框架的 CCI 都呈现 绿色（多头）或红色（空头） 时，寻找顺势交易机会。 ✅ 均值回归交易者：如果 CCI 过度超买或超卖（即绿色变红色或红色变绿色），可以考虑反转交易策略。 ✅ 多时间框架分析：不同时间框架上的 CCI 信号一致时，可以提高交易信号的可靠性。 参数:
部分代码展示:
- //+------------------------------------------------------------------+//| CCI热力图.mq4 |//| Copyright © 2009-2024, www.QChaos.com |//| https://www.qchaos.com/ |//+------------------------------------------------------------------+#property copyright "Copyright © 量化混沌, www.qchaos.com"#property link "https://www.qchaos.com"#property version "2.01"#property strict//------------------------------------------------------------------#property indicator_chart_window#property strict
- extern string Symbols = "GBPJPY;AUDJPY;NZDJPY;EURJPY;USDJPY;CHFJPY;"; // 交易品种列表（用 ";" 分隔）extern string TimeFrames = "M5;M15;M30;H1;H4"; // 时间周期列表（用 ";" 分隔）
- //extern string TimeFrames = "M1;M5;M15;M30;H1;H4;D1;W1;MN"; // 备用时间周期列表（用 ";" 分隔）extern int CciPeriod = 14; // CCI 指标的周期extern ENUM_APPLIED_PRICE Price = PRICE_TYPICAL; // CCI 计算价格类型extern double lStrongUp = 200; // CCI 强上升信号阈值extern double lStrongDown = -200; // CCI 强下降信号阈值extern int BarToTest = 0; // 计算的K线索引（0 表示当前K线）extern color StrongUp = clrLimeGreen; // CCI 强上升时的颜色（绿色）extern color Neutral = clrDarkGray; // CCI 中性区域的颜色（灰色）extern color StrongDown = clrOrangeRed; // CCI 强下降时的颜色（红色）extern int ColorSteps = 41; // 颜色渐变级数extern color TextColor = clrBlack; // 按钮文本颜色extern color BorderColor = clrBlack; // 按钮边框颜色extern color FillColor = clrSilver; // 按钮背景颜色extern int Window = 0; // 指标显示窗口（0 代表主图窗口）extern ENUM_BASE_CORNER Corner = CORNER_LEFT_LOWER; // 指标显示位置（左下角）extern int XShift = 0; // 水平偏移量extern int YShift = 0; // 垂直偏移量extern string UniqueID = "CCIHeatmap1"; // 指标唯一标识符
- // 按钮相关参数extern string button_note1 = "------------------------------"; // 按钮分隔线extern ENUM_BASE_CORNER btn_corner = CORNER_LEFT_UPPER; // 按钮固定在图表的左上角extern string btn_text = "CCI"; // 按钮文本extern string btn_Font = "Arial"; // 按钮字体extern int btn_FontSize = 10; // 按钮字体大小extern color btn_text_ON_color = clrWhite; // 按钮激活时的文本颜色（白色）extern color btn_text_OFF_color = clrRed; // 按钮关闭时的文本颜色（红色）extern color btn_background_color = clrDimGray; // 按钮背景颜色（深灰色）extern color btn_border_color = clrBlack; // 按钮边框颜色（黑色）extern int button_x = 20; // 按钮的 X 轴偏移量extern int button_y = 13; // 按钮的 Y 轴偏移量extern int btn_Width = 60; // 按钮宽度extern int btn_Height = 20; // 按钮高度extern string button_note2 = "------------------------------"; // 按钮分隔线
- bool show_data = true;string IndicatorName, IndicatorObjPrefix;//template code end1int cpairsLen,ctimesLen, aTimes[];string cpairs[];color colors[];//+------------------------------------------------------------------------------------------------------------------+string GenerateIndicatorName(const string target) //don't change anything here { string name = target; int try = 2; while(WindowFind(name) != -1) { name = target + " #" + IntegerToString(try ++); } return name; }//+------------------------------------------------------------------------------------------------------------------+string buttonId;
- //+------------------------------------------------------------------+//| |//+------------------------------------------------------------------+int OnInit() { IndicatorName = GenerateIndicatorName(btn_text); IndicatorObjPrefix = "__" + IndicatorName + "__"; IndicatorShortName(IndicatorName); IndicatorDigits(Digits);
- double val; if(GlobalVariableGet(IndicatorName + "_visibility", val)) show_data = val != 0;
- // put init() here Symbols = StringTrimLeft(StringTrimRight(Symbols)); if(StringSubstr(Symbols,StringLen(Symbols)-1,1) != ";") Symbols = StringConcatenate(Symbols,";");
- TimeFrames = StringTrimLeft(StringTrimRight(TimeFrames)); if(StringSubstr(TimeFrames,StringLen(TimeFrames)-1,1) != ";") TimeFrames = StringConcatenate(TimeFrames,";");
-
- int s = 0, i = StringFind(Symbols,";",s); while(i > 0) { string current = StringSubstr(Symbols,s,i-s); ArrayResize(cpairs,ArraySize(cpairs)+1); cpairs[ArraySize(cpairs)-1] = current; s = i + 1; i = StringFind(Symbols,";",s); } if(Corner==CORNER_LEFT_LOWER || Corner==CORNER_RIGHT_LOWER) invertArray(cpairs); cpairsLen = ArraySize(cpairs); s = 0; i = StringFind(TimeFrames,";",s); while(i > 0) { string current = StringSubstr(TimeFrames,s,i-s); int time = stringToTimeFrame(current); if(time > 0) { ArrayResize(aTimes,ArraySize(aTimes)+1); aTimes[ArraySize(aTimes)-1] = time; } s = i + 1; i = StringFind(TimeFrames,";",s); } if(Corner==CORNER_RIGHT_UPPER || Corner==CORNER_RIGHT_LOWER) invertiArray(aTimes); ctimesLen = ArraySize(aTimes);
- //////////
- if(ColorSteps%2==0) ColorSteps++; ArrayResize(colors,ColorSteps); int half = ColorSteps/2; for(i=0; i<half; i++) { colors[i ] = gradientColor(i+1,half,StrongUp,Neutral); colors[ColorSteps-i-1] = gradientColor(i+1,half,StrongDown,Neutral); } colors = Neutral;
- ChartSetInteger(ChartID(), CHART_EVENT_MOUSE_MOVE, 1); buttonId = IndicatorObjPrefix + "CCI面板2024"; createButton(buttonId, btn_text, btn_Width, btn_Height, btn_Font, btn_FontSize, btn_background_color, btn_border_color, btn_text_ON_color); ObjectSetInteger(ChartID(), buttonId, OBJPROP_YDISTANCE, button_y); ObjectSetInteger(ChartID(), buttonId, OBJPROP_XDISTANCE, button_x);
- return(INIT_SUCCEEDED); }//+------------------------------------------------------------------------------------------------------------------+//don't change anything herevoid createButton(string buttonID,string buttonText,int width,int height,string font,int fontSize,color bgColor,color borderColor,color txtColor) { ObjectDelete(ChartID(),buttonID); ObjectCreate(ChartID(),buttonID,OBJ_BUTTON,0,0,0); ObjectSetInteger(ChartID(),buttonID,OBJPROP_COLOR,txtColor); ObjectSetInteger(ChartID(),buttonID,OBJPROP_BGCOLOR,bgColor); ObjectSetInteger(ChartID(),buttonID,OBJPROP_BORDER_COLOR,borderColor); ObjectSetInteger(ChartID(),buttonID,OBJPROP_XSIZE,width); ObjectSetInteger(ChartID(),buttonID,OBJPROP_YSIZE,height); ObjectSetString(ChartID(),buttonID,OBJPROP_FONT,font); ObjectSetString(ChartID(),buttonID,OBJPROP_TEXT,buttonText); ObjectSetInteger(ChartID(),buttonID,OBJPROP_FONTSIZE,fontSize); ObjectSetInteger(ChartID(),buttonID,OBJPROP_SELECTABLE,0); ObjectSetInteger(ChartID(),buttonID,OBJPROP_CORNER,btn_corner); ObjectSetInteger(ChartID(),buttonID,OBJPROP_HIDDEN,1); ObjectSetInteger(ChartID(),buttonID,OBJPROP_XDISTANCE,9999); ObjectSetInteger(ChartID(),buttonID,OBJPROP_YDISTANCE,9999); }//+------------------------------------------------------------------------------------------------------------------+int deinit() { ObjectsDeleteAll(ChartID(), IndicatorObjPrefix);
- //put deinit() here int idLength = StringLen(UniqueID); for(int i = ObjectsTotal(); i>=0; i--) { string name = ObjectName(i); if(StringSubstr(name,0,idLength) == UniqueID) ObjectDelete(name); }
- return(0); }//+------------------------------------------------------------------------------------------------------------------+//don't change anything herebool recalc = true;
- //+------------------------------------------------------------------+//| |//+------------------------------------------------------------------+void handleButtonClicks() { if(ObjectGetInteger(ChartID(), buttonId, OBJPROP_STATE)) { ObjectSetInteger(ChartID(), buttonId, OBJPROP_STATE, false); show_data = !show_data; GlobalVariableSet(IndicatorName + "_visibility", show_data ? 1.0 : 0.0); recalc = true; start(); } }//+------------------------------------------------------------------------------------------------------------------+void OnChartEvent(const int id, //don't change anything here const long &lparam, const double &dparam, const string &sparam) { handleButtonClicks(); }//+------------------------------------------------------------------------------------------------------------------+string GetButtonState(string whichbutton) { bool selected = ObjectGetInteger(ChartID(),whichbutton,OBJPROP_STATE); if(selected) { return ("on"); } else { return ("off"); } }//+------------------------------------------------------------------------------------------------------------------+int start() { handleButtonClicks(); recalc = false; int xshift=0, nxshift=0; if(Corner==CORNER_RIGHT_LOWER || Corner==CORNER_RIGHT_UPPER) { xshift=49; nxshift=66; } for(int i = 0; i < cpairsLen; i++) ButtonCreate2(ChartID(),UniqueID+"t"+(string)i,Window,XShift+nxshift+2,YShift+30+i*15,66,14,Corner,cpairs,"Arial",9,TextColor,BorderColor,FillColor); for(int i = 0; i < ctimesLen; i++) ButtonCreate2(ChartID(),UniqueID+"h"+(string)i,Window,XShift+xshift+i*50+69,YShift+15,49,14,Corner,timeFrameToString(aTimes),"Arial",9,TextColor,BorderColor,FillColor); for(int i = 0; i < cpairsLen; i++) if(iClose(cpairs,0,0)!=0) for(int t = 0; t < ctimesLen; t++) { double value = iCCI(cpairs,aTimes[t],CciPeriod,Price,BarToTest); int step = (int)((ColorSteps-1)*(MathMax(MathMin(value,lStrongUp),lStrongDown)-lStrongDown)/(lStrongUp-lStrongDown)); color theColor = colors[ColorSteps-step-1]; ButtonCreate2(ChartID(),UniqueID+(string)t+(string)i,Window,XShift+xshift+t*50+69,YShift+30+i*15,49,14,Corner," ","arial",10,theColor,BorderColor,theColor); } if(Corner==CORNER_RIGHT_UPPER || Corner==CORNER_RIGHT_LOWER) ButtonCreate2(ChartID(),UniqueID+"title",Window,XShift+xshift+ctimesLen*50+19,YShift+30+cpairsLen*15,ctimesLen*50-1,14,Corner," CCI ("+(string)CciPeriod+")","arial",10,TextColor,BorderColor,FillColor); else ButtonCreate2(ChartID(),UniqueID+"title",Window,XShift+xshift+69,YShift+30+cpairsLen*15,ctimesLen*50-1,14,Corner," CCI ("+(string)CciPeriod+")","arial",10,TextColor,BorderColor,FillColor);// ButtonCreate2(ChartID(),UniqueID+"title",Window,XShift+xshift+ctimesLen*50+19,YShift+30+cpairsLen*15,ctimesLen*50-1,14,Corner," Stochastic ("+(string)StoPeriod+","+(string)StoSmoothing+")","arial",10,TextColor,BorderColor,FillColor);// else ButtonCreate2(ChartID(),UniqueID+"title",Window,XShift+xshift+69 ,YShift+30+cpairsLen*15,ctimesLen*50-1,14,Corner," Stochastic ("+(string)StoPeriod+","+(string)StoSmoothing+")","arial",10,TextColor,BorderColor,FillColor);
- if(!show_data) { ObjectSetInteger(ChartID(),buttonId,OBJPROP_COLOR,btn_text_OFF_color); int idLength = StringLen(UniqueID); for(int i = ObjectsTotal(); i>=0; i--) { string name = ObjectName(i); if(StringSubstr(name,0,idLength) == UniqueID) ObjectDelete(name); } } else ObjectSetInteger(ChartID(),buttonId,OBJPROP_COLOR,btn_text_ON_color);
- return(0); }
复制代码
|
