官方ZIGZAG指标在程序调用时会出现与加载图表时值不符的情况，下面的指标源码能很好地解决这个问题
里面含有几个源码：这是其中一段
//---- author of the indicator
#property copyright "Copyright ?2005, MetaQuotes Software Corp."
//---- link to the website of the author
#property link      "http://www.metaquotes.net/"
//---- indicator version
#property version   "1.00"
#property description "ZigZag"
//+----------------------------------------------+
//|  Indicator drawing parameters                |
//+----------------------------------------------+
//---- drawing the indicator in the main window
#property indicator_chart_window
//---- 2 buffers are used for calculation of drawing of the indicator
#property indicator_buffers 2
//---- only 1 plot is used
#property indicator_plots   1
//---- ZIGZAG is used for the indicator
#property indicator_type1   DRAW_ZIGZAG
//---- displaying the indicator label
#property indicator_label1  "ZigZag_NK"
//---- use blue violet color for the indicator line
#property indicator_color1 BlueViolet
//---- the indicator line is a long dashed line
#property indicator_style1  STYLE_DASH
//---- indicator line width is equal to 1
#property indicator_width1  1
//+----------------------------------------------+
//|  Indicator input parameters                  |
//+----------------------------------------------+

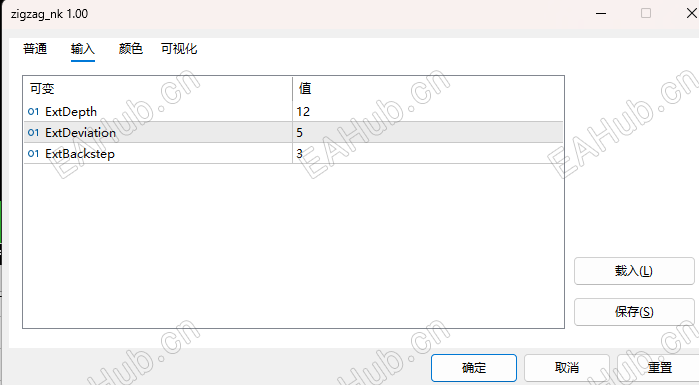

input int ExtDepth=12;
input int ExtDeviation=5;
input int ExtBackstep =3;

//---- declaration of dynamic arrays that
// will be used as indicator buffers
double HighestBuffer[];
double LowestBuffer[];

//---- declaration of memory variables for recalculation of the indiator only at the previously not calculated bars
int LASTlowpos,LASThighpos;
double LASTlow0,LASTlow1,LASThigh0,LASThigh1;

//---- Declaration of the integer variables for the start of data calculation
int StartBars;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
void OnInit()
  {
//---- initialization of variables of the start of data calculation
   StartBars=ExtDepth+ExtBackstep;

//---- set dynamic arrays as indicator buffers
   SetIndexBuffer(0,LowestBuffer,INDICATOR_DATA);
   SetIndexBuffer(1,HighestBuffer,INDICATOR_DATA);
//---- restriction to draw empty values for the indicator
   PlotIndexSetDouble(0,PLOT_EMPTY_VALUE,0.0);
   PlotIndexSetDouble(1,PLOT_EMPTY_VALUE,0.0);
//---- create labels to display in Data Window
   PlotIndexSetString(0,PLOT_LABEL,"ZigZag Lowest");
   PlotIndexSetString(1,PLOT_LABEL,"ZigZag Highest");
//---- indexing the elements in buffers as timeseries
   ArraySetAsSeries(LowestBuffer,true);
   ArraySetAsSeries(HighestBuffer,true);
//---- set the position, from which the Bollinger Bands drawing starts
   PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,StartBars);
   PlotIndexSetInteger(1,PLOT_DRAW_BEGIN,StartBars);
//---- Setting the format of accuracy of displaying the indicator
   IndicatorSetInteger(INDICATOR_DIGITS,_Digits);
//---- name for the data window and the label for sub-windows
   string shortname;
   StringConcatenate(shortname,"ZigZag (ExtDepth=",
                     ExtDepth,"ExtDeviation = ",ExtDeviation,"ExtBackstep = ",ExtBackstep,")");
   IndicatorSetString(INDICATOR_SHORTNAME,shortname);
//----
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//---- checking the number of bars to be enough for the calculation
   if(rates_total<StartBars) return(0);

//---- declarations of local variables
   int limit,bar,back,lasthighpos,lastlowpos;
   double curlow,curhigh,lasthigh0=0.0,lastlow0=0.0,lasthigh1,lastlow1,val,res;

//---- calculate the limit starting number for loop of bars recalculation and start initialization of variables
   if(prev_calculated>rates_total || prev_calculated<=0) // checking for the first start of the indicator calculation
     {
      limit=rates_total-StartBars; // starting index for calculation of all bars

      lastlow1=-1;
      lasthigh1=-1;
      lastlowpos=-1;
      lasthighpos=-1;
     }
   else
     {
      limit=rates_total-prev_calculated; // starting index for calculation of new bars

      //---- restore values of the variables
      lastlow0=LASTlow0;
      lasthigh0=LASThigh0;

      lastlow1=LASTlow1;
      lasthigh1=LASThigh1;

      lastlowpos=LASTlowpos+limit;
      lasthighpos=LASThighpos+limit;
     }

//---- indexing elements in arrays as timeseries
   ArraySetAsSeries(high,true);
   ArraySetAsSeries(low,true);

//---- first big indicator calculation loop
   for(bar=limit; bar>=0 && !IsStopped(); bar--)
     {
      //---- store values of the variables before running at the current bar
      if(rates_total!=prev_calculated && bar==0)
        {
         LASTlow0=lastlow0;
         LASThigh0=lasthigh0;
        }

      //---- low
      val=low[ArrayMinimum(low,bar,ExtDepth)];
      if(val==lastlow0) val=0.0;
      else
        {
         lastlow0=val;
         if((low[bar]-val)>(ExtDeviation*_Point))val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=LowestBuffer[bar+back];
               if((res!=0) && (res>val))LowestBuffer[bar+back]=0.0;
              }
           }
        }
      LowestBuffer[bar]=val;

      //---- high
      val=high[ArrayMaximum(high,bar,ExtDepth)];
      if(val==lasthigh0) val=0.0;
      else
        {
         lasthigh0=val;
         if((val-high[bar])>(ExtDeviation*_Point))val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=HighestBuffer[bar+back];
               if((res!=0) && (res<val))HighestBuffer[bar+back]=0.0;
              }
           }
        }
      HighestBuffer[bar]=val;

     }

//---- the second big indicator calculation loop
   for(bar=limit; bar>=0; bar--)
     {
      //---- store values of the variables before running at the current bar
      if(rates_total!=prev_calculated && bar==0)
        {
         LASTlow1=lastlow1;
         LASThigh1=lasthigh1;

         LASTlowpos=lastlowpos;
         LASThighpos=lasthighpos;
        }

      curlow=LowestBuffer[bar];
      curhigh=HighestBuffer[bar];
      //----
      if((curlow==0) && (curhigh==0))continue;
      //----
      if(curhigh!=0)
        {
         if(lasthigh1>0)
           {
            if(lasthigh1<curhigh)HighestBuffer[lasthighpos]=0;
            else HighestBuffer[bar]=0;
           }
         //----
         if(lasthigh1<curhigh || lasthigh1<0)
           {
            lasthigh1=curhigh;
            lasthighpos=bar;
           }
         lastlow1=-1;
        }
      //----
      if(curlow!=0)
        {
         if(lastlow1>0)
           {
            if(lastlow1>curlow) LowestBuffer[lastlowpos]=0;
            else LowestBuffer[bar]=0;
           }
         //----
         if((curlow<lastlow1) || (lastlow1<0))
           {
            lastlow1=curlow;
            lastlowpos=bar;
           }
         lasthigh1=-1;
        }
     }
//----
   return(rates_total);
  }
//+------------------------------------------------------------------+
