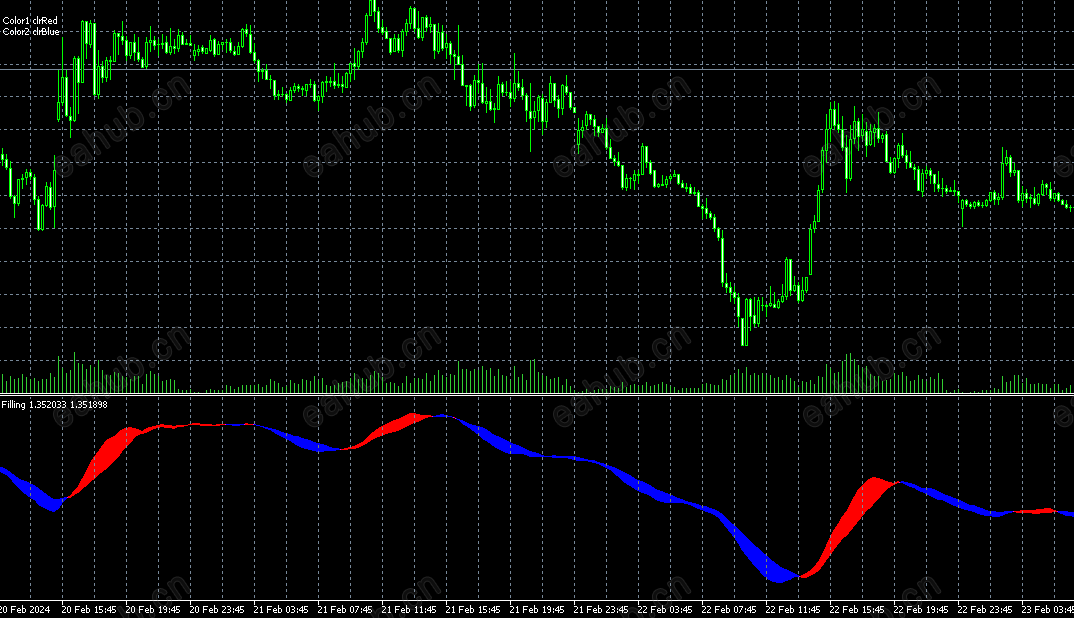

我们在开发自定义指标的时候,有时候需要开发彩带指标,如下图所示。彩带可能需要显示在附图,也可能需要显示的主图。
这样的需求,在MT5中是非常容易实现的,只要设置指标类型为DRAW_FILLING 即可。
- #property indicator_type1 DRAW_FILLING
复制代码
上图代码如下
- #property copyright "EACODE"
- #property link "http://www.eacode.cn"
-
- #property description "An indicator to demonstrate DRAW_FILLING"
- #property description "It draws a channel between two MAs in a separate window"
- #property description "The fill color is changed randomly"
- #property description "after every N ticks"
-
- #property indicator_separate_window
- #property indicator_buffers 2
- #property indicator_plots 1
- //--- 标图交集
- #property indicator_label1 "Intersection"
- #property indicator_type1 DRAW_FILLING
- #property indicator_color1 clrRed,clrBlue
- #property indicator_width1 1
- //--- 输入参数
- input int Fast=13; // 快速MA的周期
- input int Slow=21; // 慢速MA的周期
- input int shift=1; // 向未来的MAs转移(正值)
- input int N=5; // 改变订单号数量
- //--- 指标缓冲区
- double IntersectionBuffer1[];
- double IntersectionBuffer2[];
- int fast_handle;
- int slow_handle;
- //--- 存储颜色的数组0到5的
- color colors[]={clrRed,clrBlue,clrGreen,clrAquamarine,clrBlanchedAlmond,clrBrown,clrCoral,clrDarkSlateGray};
- //+------------------------------------------------------------------+
- //| 自定义指标初始化函数 |
- //+------------------------------------------------------------------+
- int OnInit()
- {
- //--- 指标缓冲区映射
- SetIndexBuffer(0,IntersectionBuffer1,INDICATOR_DATA);
- SetIndexBuffer(1,IntersectionBuffer2,INDICATOR_DATA);
- //---
- //PlotIndexSetInteger(0,PLOT_SHIFT,shift);
- //---
- fast_handle=iMA(_Symbol,_Period,Fast,0,MODE_SMA,PRICE_CLOSE);
- slow_handle=iMA(_Symbol,_Period,Slow,0,MODE_SMA,PRICE_CLOSE);
- //---
- return(INIT_SUCCEEDED);
- }
- //+------------------------------------------------------------------+
- //| 自定义指标迭代函数 |
- //+------------------------------------------------------------------+
- int OnCalculate(const int rates_total,
- const int prev_calculated,
- const datetime &time[],
- const double &open[],
- const double &high[],
- const double &low[],
- const double &close[],
- const long &tick_volume[],
- const long &volume[],
- const int &spread[])
- {
- static int ticks=0;
- //--- 计算订单号改变样式,颜色和线型宽度
- ticks++;
- //--- 如果足够数量的订单号被积累
- if(ticks>=N)
- {
- //--- 改变线型属性
- ChangeLineAppearance();
- //--- 重置0计数器
- ticks=0;
- }
-
- //--- 指标的第一次计算,或数据变化,需要一次完全重新计算
- if(prev_calculated==0)
- {
- //--- 复制所有指标值至相应的缓冲区
- int copied1=CopyBuffer(fast_handle,0,0,rates_total,IntersectionBuffer1);
- int copied2=CopyBuffer(slow_handle,0,0,rates_total,IntersectionBuffer2);
- }
- else // 仅填充那些更新的数据
- {
- //--- 获得OnCalculate()当前和之前启动之间的柱形不同
- int to_copy=rates_total-prev_calculated;
- //--- 如果没有不同,我们仍然会复制一个值 - 在零柱
- if(to_copy==0) to_copy=1;
- //--- 复制_copy 值到指标缓冲区的最末端
- int copied1=CopyBuffer(fast_handle,0,0,to_copy,IntersectionBuffer1);
- int copied2=CopyBuffer(slow_handle,0,0,to_copy,IntersectionBuffer2);
- }
- //--- 返回 prev_calculated值以便下次调用函数
- return(rates_total);
- }
- //+------------------------------------------------------------------+
- //| 改变通道填充颜色 |
- //+------------------------------------------------------------------+
- void ChangeLineAppearance()
- {
- //--- 形成线型属性信息的字符串
- string comm="";
- //--- 改变线型颜色的模块
- int number=MathRand(); // 获得随机数
- //--- 除数等于colors[]数组的大小
- int size=ArraySize(colors);
-
- //--- 获得选择新颜色作为整数除法余数的标引
- int color_index1=number%size;
- //--- 设置第一个颜色为PLOT_LINE_COLOR 属性
- PlotIndexSetInteger(0,PLOT_LINE_COLOR,0,colors[color_index1]);
- //--- 写下第一个颜色
- comm=comm+"\r\nColor1 "+(string)colors[color_index1];
-
- //--- 获得选择新颜色作为整数除法余数的标引
- number=MathRand(); // 获得随机数
- int color_index2=number%size;
- //--- 设置第二个颜色为PLOT_LINE_COLOR 属性
- PlotIndexSetInteger(0,PLOT_LINE_COLOR,1,colors[color_index2]);
- //---写下第二个颜色
- comm=comm+"\r\nColor2 "+(string)colors[color_index2];
- //--- 使用注释在图表上显示信息
- Comment(comm);
- }
复制代码
在MT4中由于不支持DRAW_FILLING指标类型,我们可以通过DRAW_HISTOGRAM来实现。
只需要在主图,定义两个DRAW_HISTOGRAM类型的Buffer,就可以实现该功能。
- #property indicator_chart_window
- #property indicator_buffers 2
- #property indicator_plots 2
- //--- 标图交集
- #property indicator_label1 "均线带"
- #property indicator_type1 DRAW_HISTOGRAM
- #property indicator_color1 clrRed
- #property indicator_width1 3
-
- #property indicator_label2 "均线带"
- #property indicator_type2 DRAW_HISTOGRAM
- #property indicator_color2 clrLime
- #property indicator_width2 3
复制代码

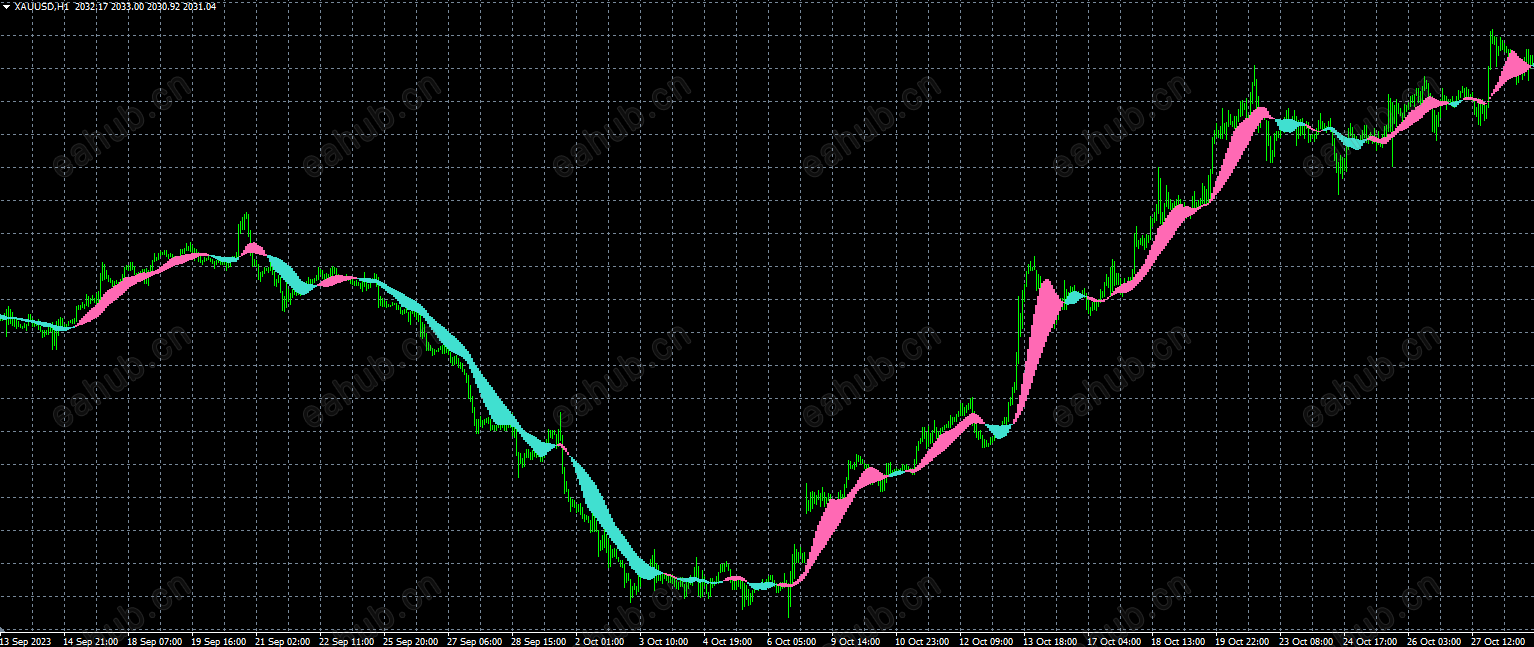

最终效果如下。
完整代码如下:
